14.2      Interior Signage

The graphic style for BWI Marshall signage is Helvetica Regular. All sign boxes shall be internally lighted. Sign boxes in the Domestic Terminal shall be black and those in the International Terminal shall match Benjamin Moore 1608 Grey. New signs shall match the Airport’s Standard.

LED Signs shall match the existing signs manufactured by Winona Lighting, Cole Lighting, or Bergen Art Metal. LED message center shall be manufactured by Salescaster Displays or approved equal.

14.2.1          Exit Signs

Refer to Volume 3, Section 5.1 Exit Signs.

14.2.2          Identification Signage

14.2.2.1        Door Identification Signs

Refer to Volume 3, Section 5.2 Fire Protection Identification Signage.

14.2.2.2        Door Numbering Plates

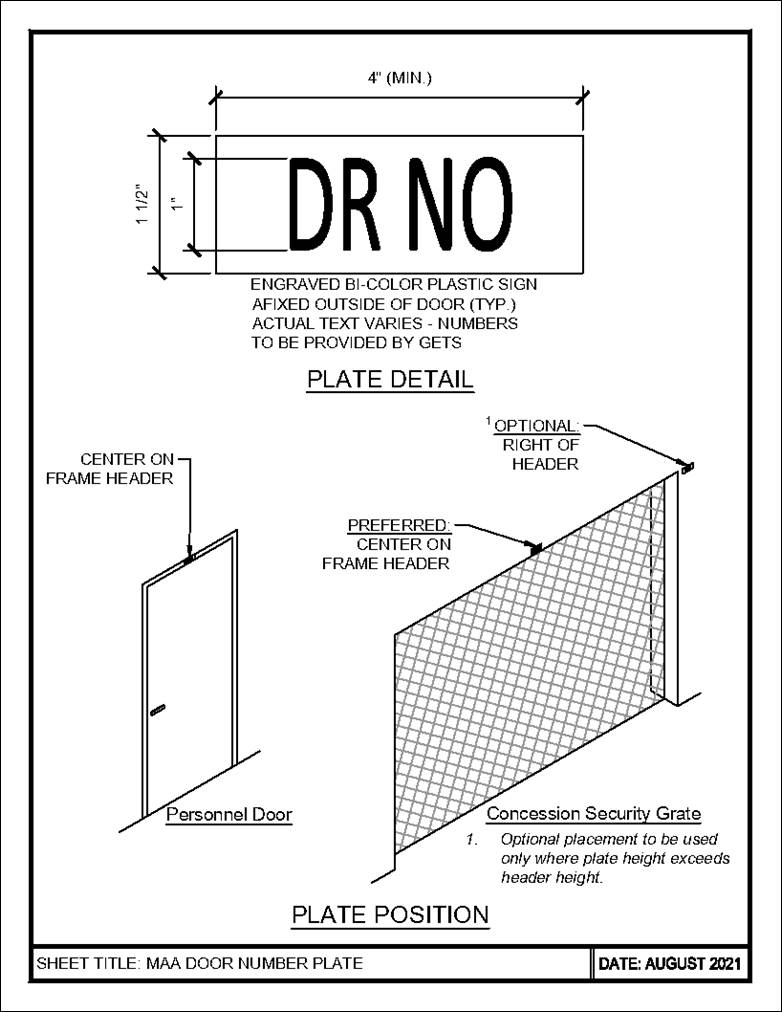

A.     Door Number plates shall be installed centered on the doorframe header on the exterior (public) side of the door. Plate shall be 4” minimum width by 1-1/2” height, black plastic, engraved with the Door Number in 1” tall white lettering, fastened to the frame by self-adhesive mounting tape.

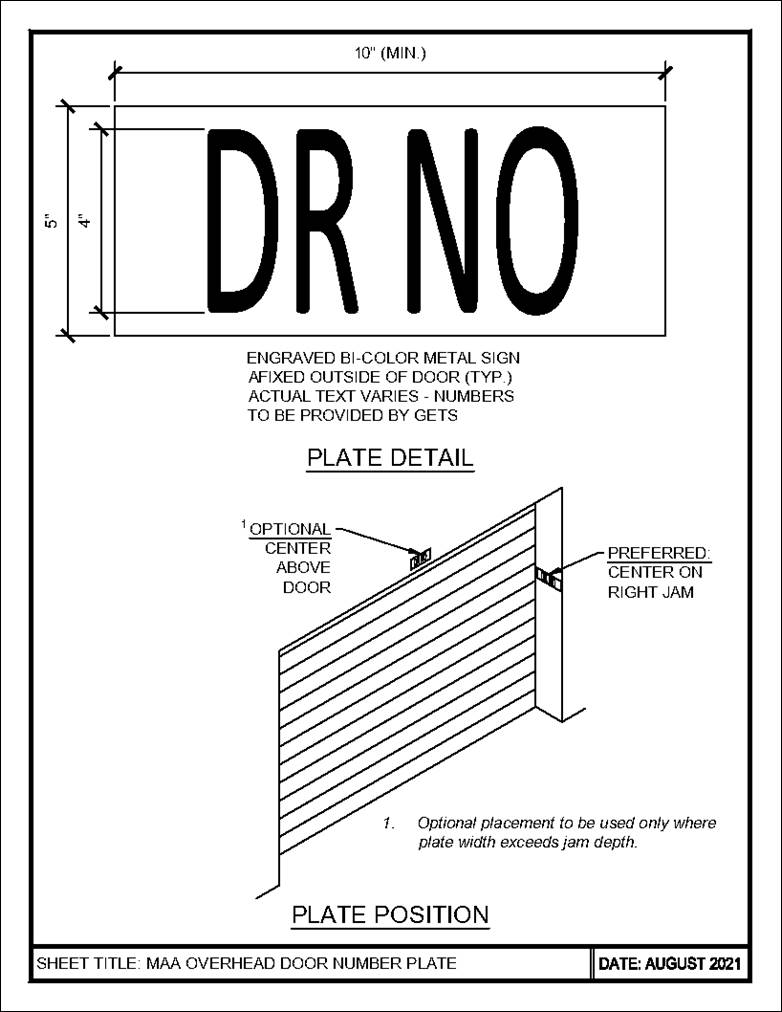

B.     Door Number plates for overhead roll-up doors (both interior and exterior) shall be installed centered, as possible, on the exterior right side of the door jamb, facing inward. Plate shall be 10” minimum width by 5” height, black metal, engraved with the Door Number in 4” tall white lettering, fastened to the frame by screws.

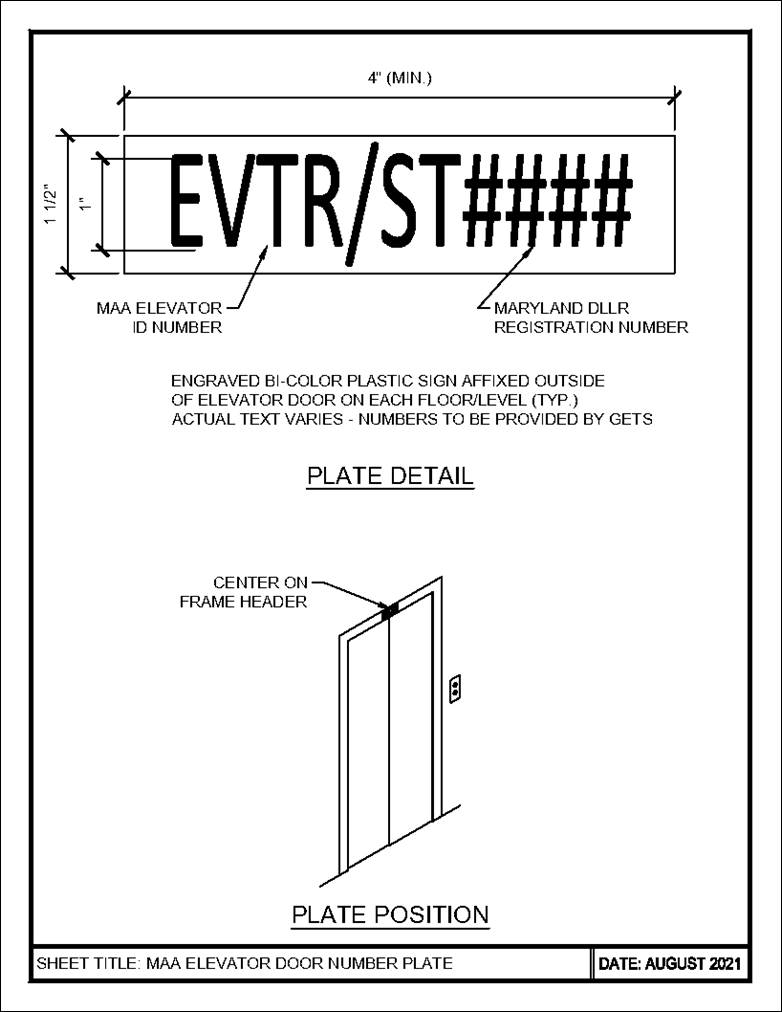

C.      Door Number plates for elevator doors shall be installed centered on the doorframe header at each floor/level.

D.     See PEGS Volume 1, Section 2.4 Door Number Assignment for door numbering requirements.

E.      Click each image to download the details in Adobe PDF format.
