5.2        Fire Protection Identification Signage

Fire protection identification signs will be provided as outlined below. Consultant is responsible for developing a suitable permanent attachment method for approval by the MAA Project Manager and the Office of the Fire Marshal. Glue or tape shall not be used.

1.      “SPRINKLER CONTROL VALVES” and “SPRINKLER/STANDPIPE CONTROL VALVES”

·        Metal type sign with red background and 2” tall reflective white letters.

·        Sign size: 26”x6"

·        The sign shall be placed on the door closest to the valves. These signs will be placed indoors and outdoors.

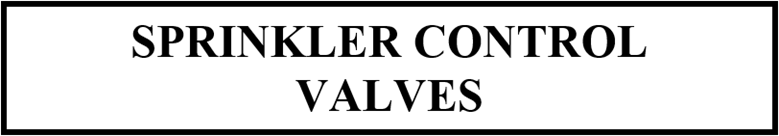

Sign type No. 1

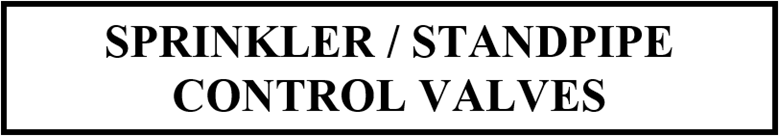

Sign type No. 2

2.      Electrical Substations (“WARNING ELECTRIC SUBSTATION PROTECTED BY WET SPRINKLER SYSTEM”)

·        This sign shall be used to identify the location of Electrical Substations.

·        Metal type sign with red background and 2” tall white reflective letters.

·        Sign size: 26”x6"

·        shall be placed on the outside of the door.

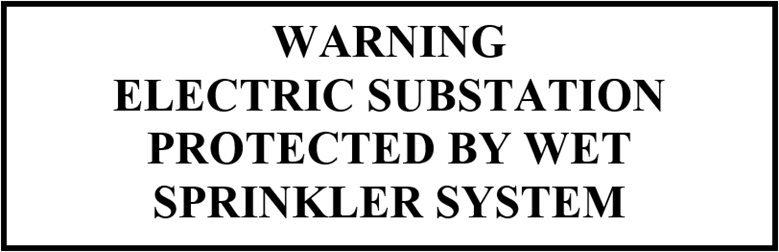

Electrical Substation Warning Sign

3.      Standpipe Connection (“Fire Dept. Standpipe Connection”)

·        This sign shall be made like a bumper sticker. It will be used indoors only and placed on smooth metal or glass. It will be placed over existing signage on glass that is stenciled on the interior of the glass.

·        The sign contractor shall determine the sign size (minimum 10”x3"), color and size of the lettering.

·        The locations and placement shall be field determined.

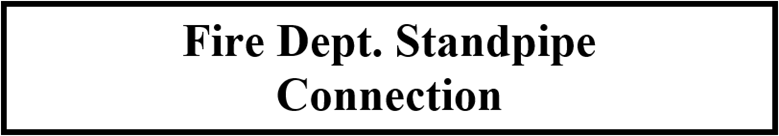

Standpipe Connection Sign

4.      Fire Command Room (“FIRE COMMAND ROOM FAP-HVAC-PA)

·        Metal type sign with red background and 2” tall white reflective letters.

·        Sign size: 26”x6”

·        The sign will be placed on the outside of the door.

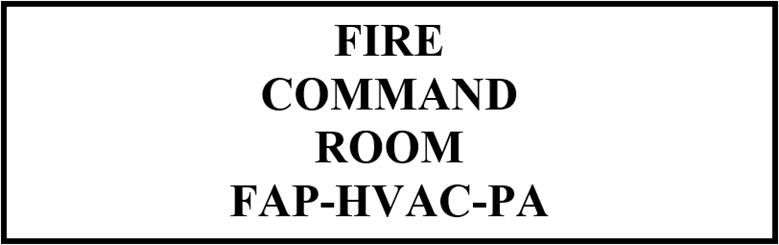

Fire Command Room Sign
